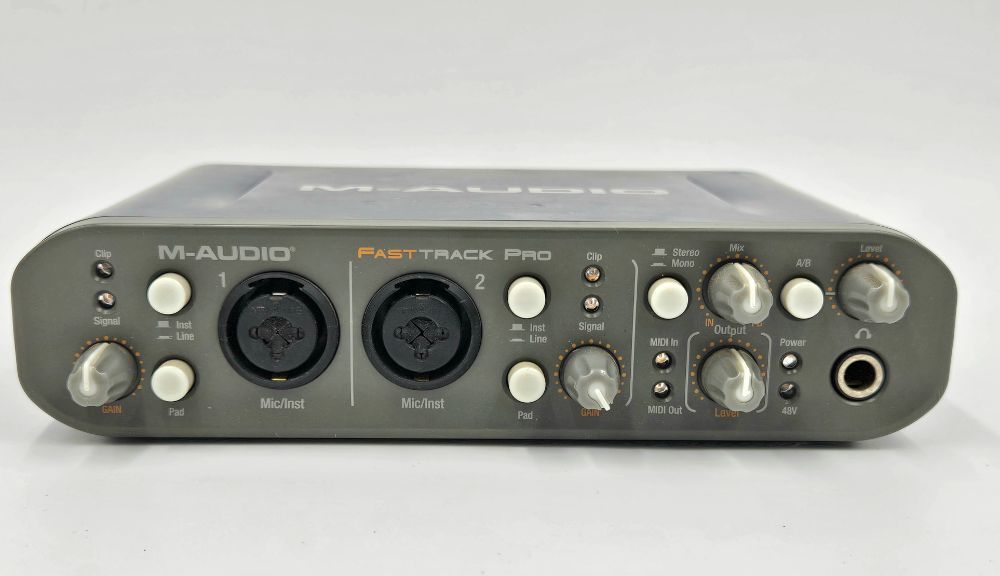

• 2 front-panel XLR / TRS combo inputs (mic or instrument) with gain control, pads, and phantom power.

• Insert jacks for inputs 1 & 2 (1/4″ TRS) to use external processors.

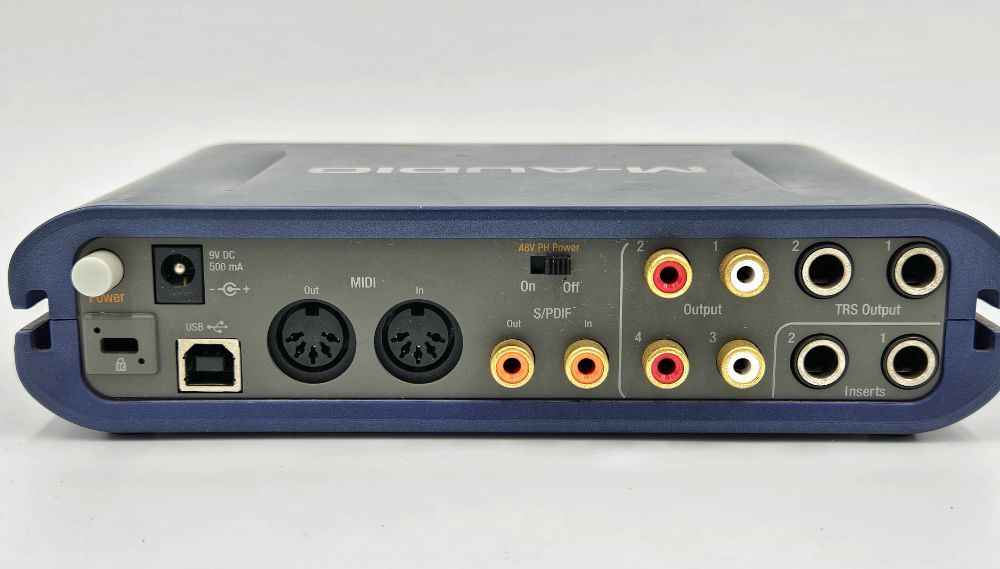

• Analog outputs: 2 × 1/4″ TRS (balanced) + 4 × RCA unbalanced.

• Digital I/O: 1 × RCA S/PDIF input and output.

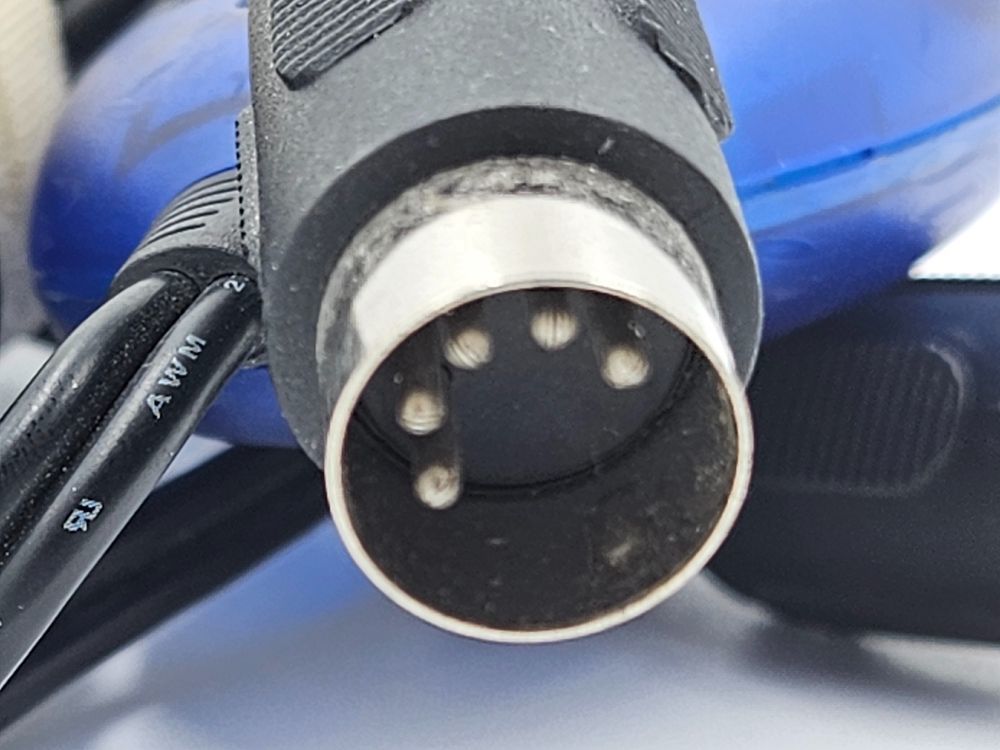

• MIDI I/O: Full MIDI In and Out.

• Headphone out: 1/4″ TRS with its own level control & A/B source switch for cueing.

Audio Quality

• 24-bit / up to 96 kHz sample rate.

• With 16-bit mode it can operate as 4-in / 4-out; at 24-bit / 96 kHz it’s 2-in / 2-out or digital connections.

• Dynamic range: ~101 dB, very low distortion (THD+N ~0.005%)

Monitoring / Latency

• Near zero-latency hardware direct monitoring, with mono switch and mix control.

• Also supports low-latency ASIO software monitoring for Windows.

Compatibility / Drivers

• Works with WDM / ASIO 2 (Windows) and Core Audio (Mac).

• Compatible with older macOS (class-compliant mode on Mac OS X 10.3.9 or higher)

• Comes bundled (historically) with Ableton Live Lite and other software.
